Product Datasheet Search Results:

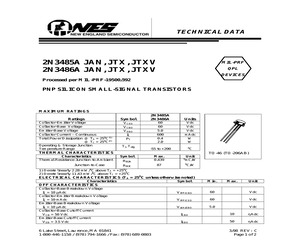

2 Pages, 22 KB, Original- JAN2N3485A
- Microsemi Corp.
- 600 mA, 60 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-206AB

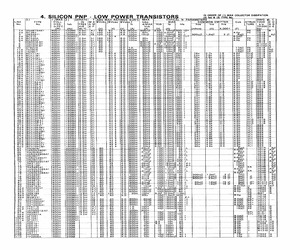

1 Pages, 166 KB, Scan- JAN2N3485A
- N/a
- Shortform Transistor PDF Datasheet

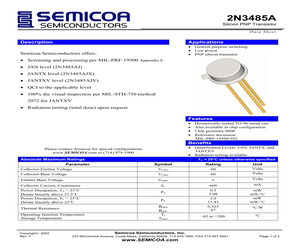

2 Pages, 312 KB, Original- JAN2N3485A
- Semicoa
- 600 mA, 60 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-46
Product Details Search Results:
Microsemi.com/JAN2N3485A
{"Status":"ACTIVE","Terminal Finish":"TIN LEAD","Package Body Material":"METAL","Mfr Package Description":"TO-46, 3 PIN","Terminal Form":"WIRE","Power Dissipation Ambient-Max":"0.4000 W","Package Style":"CYLINDRICAL","DC Current Gain-Min (hFE)":"40","Collector-emitter Voltage-Max":"60 V","Transistor Element Material":"SILICON","Collector Current-Max (IC)":"0.6000 A","Terminal Position":"BOTTOM","Transistor Polarity":"PNP","Package Shape":"ROUND","Configuration":"SINGLE","Transistor Type":"GENERAL PURPOSE SM...
1275 Bytes - 08:20:19, 28 March 2025
Semicoa.com/JAN2N3485A
{"Status":"ACTIVE","Package Body Material":"METAL","Mfr Package Description":"HERMETIC SEALED, METAL CAN-3","Terminal Form":"WIRE","Power Dissipation Ambient-Max":"0.5000 W","Package Style":"CYLINDRICAL","DC Current Gain-Min (hFE)":"40","Collector-emitter Voltage-Max":"60 V","Transistor Application":"SWITCHING","Collector Current-Max (IC)":"0.6000 A","Transistor Element Material":"SILICON","Terminal Position":"BOTTOM","Transistor Polarity":"PNP","Package Shape":"ROUND","Configuration":"SINGLE","Transistor T...
1278 Bytes - 08:20:19, 28 March 2025
